Specifications

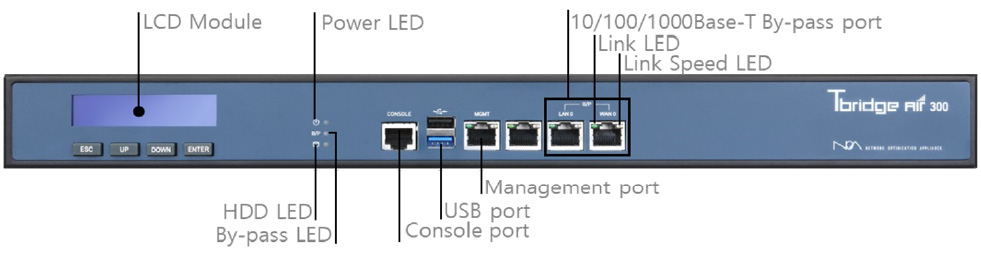

Tbridge Air300-B Model

Tbridge Air300-Bモデル

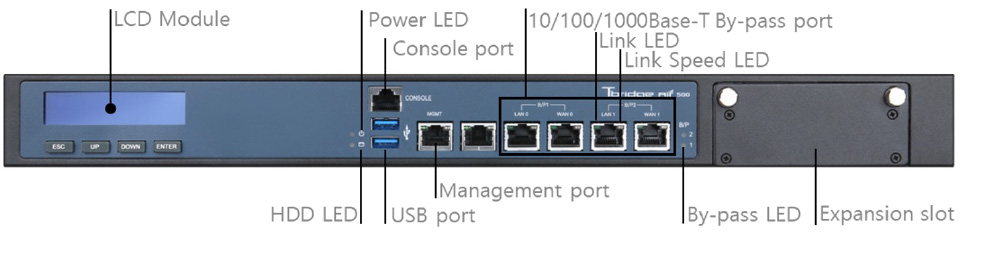

Tbridge Air 500-B / 1000-B Model

Tbridge Air 500-B, 1000-Bモデル

Model TBRIDGE 300 TBRIDGE 500 TBRIDGE 1000
Throughput 1Gbps 1Gbps 1Gbps
TCP Connections 200,000 400,000 500,000
Data Store Capacity(SSD) 250GB  250GB  250GB
Memory 8GB 16GB 16GB
Onboard Bypass ports(Copper) 2Port(10/100/1000Mbps) 4Port(10/100/1000Mbps) 4Port(10/100/1000Mbps)
Onboard Non-Bypass ports(Copper) 2Port(10/100/1000Mbps) 2Port(10/100/1000Mbps) 2Port(10/100/1000Mbps)
Fiber Bypass port(Option) 　 2Port 1GbE SFP 2Port 1GbE SFP
10Gbps Bypass Ports(Option) 　 2Port 10GbE SFP 2Port 10GbE SFP
Model Number TBA300-AD-B TBA500-AD-B TBA1000-AD-B
Bridge Port 2 ports (10/100/1000Mbps) 4 ports (10/100/1000Mbps) 4 ports (10/100/1000Mbps)
Non-Bridge Port 2 ports (10/100/1000Mbps) 2 ports (10/100/1000Mbps) 2 ports (10/100/1000Mbps)
Serial Interface 1 port 1 port 1 port
Management USB Port 2 port 2 port 2 port
External Dimensions W (mm) x D (mm) x H (mm) 438(W) x 225(D) x 44(H) 438(W) x 292(D) x 44(H) 438(W) x 292(D) x 44(H)
Weight 2.7kg 5kg 5kg
Power Supply AC100V-240V AC100V-240V AC100V-240V
Power Consumption Max 40W Max 150W Max 150W
Operating Temperature 0-40℃ 0-40℃ 0-40℃
Operating Humidity 20%-80%RH 20%-80%RH 20%-80%RH
